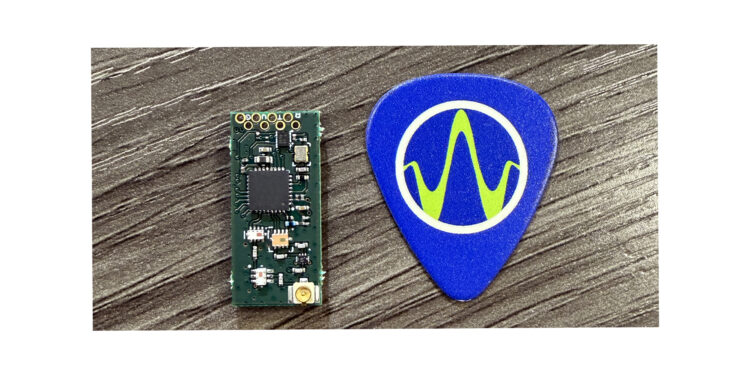

IGUANA Drone Radio-Control Dual Band ELRS Receiver
Product Overview
As part of our IGUANA family of IoT products, Syncopated is offering our NDAA-compliant, single channel, dual band, Drone Radio-Control ELRS Receiver. Provides ExpressLRS (ELRS) radio-control and MAVLink telemetry with all the features of the latest software release, in a small-form factor module that integrates directly with your flight-controller. Dual band transceivers enable Sub 1 GHz or 2.4 GHz operation, providing long-range, robust drone radio communications. The Radio-Control Application provides system configuration and firmware update. User configurable radio link parameters include frequency band selection and transmit power. Pairs great with our NDAA-Compliant IGUANA Drone Radio-Control ELRS Transmitters.
SPECIFICATIONS
| Frequency Range | Dual Band: Sub 1 GHz (US: 915MHz / EU: 868MHz) and 2.4 GHz |
| Telemetry Transmit Power | Single channel, max 100mw |
| Antenna Ports (1 RF port) | U.FL Male (MHF1 or AMC) |
| Data Communication Connector | Solderable Vias |
| Data Communications Interface | SWD, UART |
| Input Voltage | 5VDC |
| Physical | 1" X 0.5", 1.4g |
| Radio-Control and Telemetry | ELRS and MAVLink |
ORDERING INFORMATION
| Model # | Description |
|---|---|
| IGRX-1201-XXX | Single Channel, Dual Band Radio-Control ELRS Receiver |
