FIREFLY CUAS Passive Detector Swarm
Product Overview

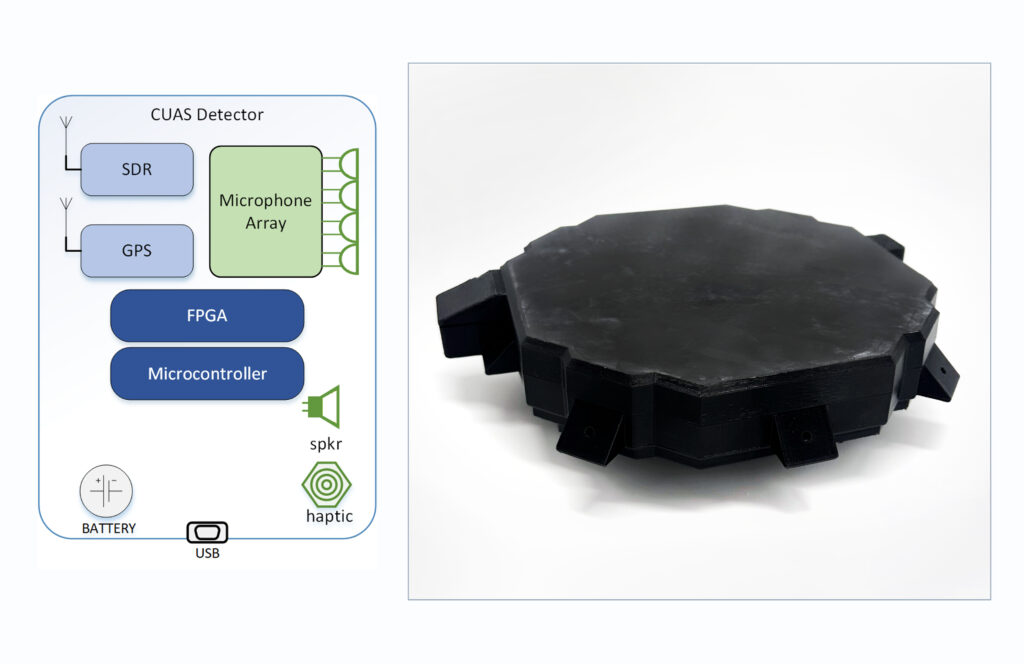

As part of our FIREFLY Software Radio family of products, Syncopated is offering a multi-modal CUAS passive sensing solution that integrates acoustic and RF sensing capabilities to create a distributed wireless sensor network with ATAK application providing a cost-effective UAS detection and early warning system. The CUAS Detector is a low SWAP device (5.75 x 5.75 x 2 in, ~200g) which is powered by an internal USB rechargeable Lithium-Ion battery. The CUAS Detector can be deployed as a wearable system, a SUAS payload or as a distributed attritable ground sensing solution. The wearable system provides audio and haptic alerting. The CUAS Detector integrates a microphone array with our FIREFLY Software Defined Radio (SDR), providing acoustic and RF sensing, sensor fusion, and platform recognition at the edge.
specifications
| Acoustic Detector | 8-chan MEMS Microphone Array |
| RF Detector and Wireless Network | Dual-Band FIREFLY SDR (sub 1GHz, 2.4 GHz: see RF specs below) |
| RF Frequency Range: (Dual Band: sub 1GHz, and 2.4GHz) | ISM Option: 389.5-510MHz, 779-1020MHz, 2400-2485MHz Extended Range Option: 200-2485 |
| Instantaneous Bandwidth (IBW) | Tx: max 1MHz, Rx: max 2MHz |
| Tx Power | Up to 1W |
| Rx Noise Figure | < 5dB |
| Rx Sensitivity | -123dBm |
| RF Interfaces | RF1: sub 1 GHz, RF2: 2.4GHz (2x SMA) |
| GPS | Built-in commercial GNSS receiver (concurrent operation GPS, GLONASS, Galileo, BeiDou). Antenna: Internal and External Options |
| Data Interfaces | USB (Ethernet option) |
| Battery | USB Rechargeable Li Ion |
| Dimensions | 5.75 x 5.75 x 2 in |
| Weight | ~200g |
The CUAS Detector can be deployed as part of a distributed CUAS Detector swarm to provide collaborative sensing across
a distributed wireless sensor network to improve accuracy and location information.
Acoustic Detector: The acoustic CUAS detection and platform recognition capability uses machine learning algorithms
trained on the acoustic signature of the platforms. The acoustic signature includes time-frequency spectrogram features as well as cepstral features. The multi-channel microphone array provides a direction-finding capability as well as improves detection range.
RF Detector: The RF CUAS Detector provides signal detection and recognition of common UAS C2, data and telemetry links and specific modulation recognition (GFSK, QPSK, OFDM, etc.).
On-Board Multi-Modal Sensor Fusion: The embedded microcontroller features an ARM Cortex-M55 processor and a Neural Processing Unit (NPU) for energy-efficient AI inference at the edge. The processor is responsible for audio and RF signal processing including data conditioning, feature extraction, multi-modal sensor fusion and AI inference.
Collaborative Geolocation Swarm and ATAK Application: The ATAK application aggregates data from across the distributed CUAS Detector swarm and displays the acoustic signal strength at each sensor location creating a heatmap to capture the threat range and direction.
RF Detector: The RF CUAS Detector provides signal detection and recognition of common UAS C2, data and telemetry links and specific modulation recognition (GFSK, QPSK, OFDM, etc.).
On-Board Multi-Modal Sensor Fusion: The embedded microcontroller features an ARM Cortex-M55 processor and a Neural Processing Unit (NPU) for energy-efficient AI inference at the edge. The processor is responsible for audio and RF signal processing including data conditioning, feature extraction, multi-modal sensor fusion and AI inference.
Collaborative Geolocation Swarm and ATAK Application: The ATAK application aggregates data from across the distributed CUAS Detector swarm and displays the acoustic signal strength at each sensor location creating a heatmap to capture the threat range and direction.
